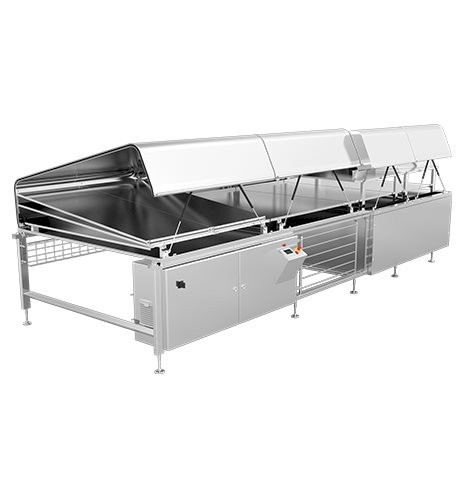

Nielsen Cooling Tunnel
The versatile and highly efficient Nielsen Cooling Tunnel caters to both chocolate and bakery products. Designed with individual hatches that are easily accessible for convenient cleaning and maintenance. Available in aluminum, stainless steel, or a customizable mix of materials.
Explore the Nielsen Cooling Tunnel
Take the Nielsen Cooling Tunnel for a 360° spin
Covers come in aluminum, stainless steel or a combination.

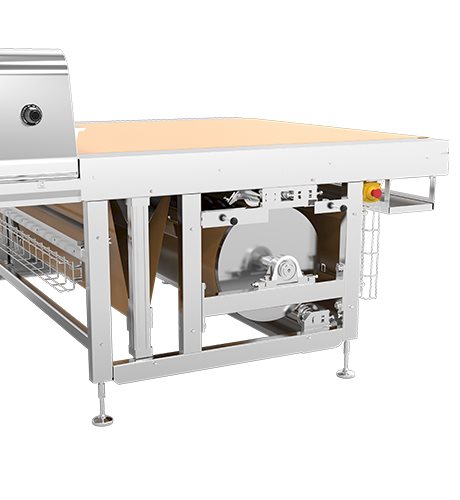

FDA-approved band and band tensioning station.

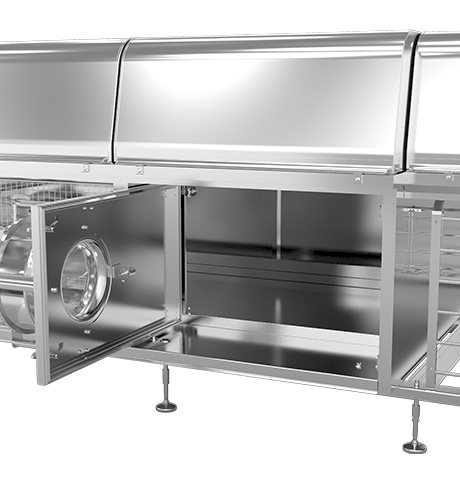

Easy removable air guide plates and water-cooled bottom plates.

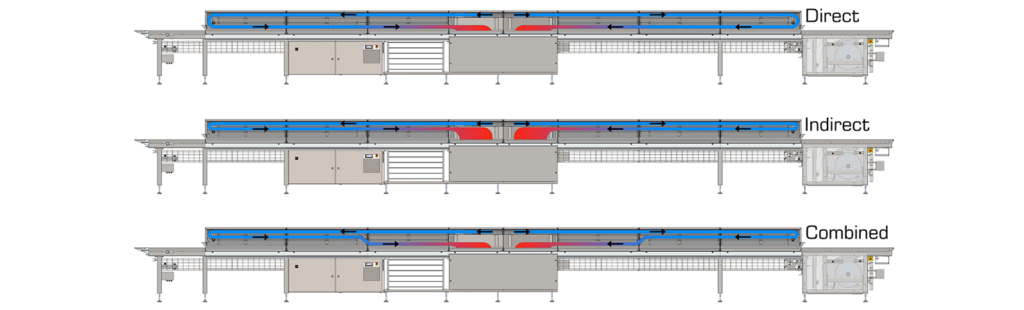

Three types of cooling
1. Direct cooling
Air circulates both above and below the products, achieving a maximum airspeed of 3.2 m/s. This gentle method effectively removes BTUs from the product, ensuring optimal cooling.
2. Indirect cooling
Chilled air gently falls over the articles through radiation. Indirect cooling offers a stable and seamless process that ensures uninterrupted product quality.
3. Combined cooling
Our system is designed to provide softer cooling at the beginning of the process, gradually intensifying towards the end to minimize fat bloom effectively.
Specifications
| Air supply | 6 bar, 75 liter/min |
| Cooling coil refrigerant | Propylene-glycol 30% & Inlet +1°C / outlet +5°C |
| Infeed table | 1000 mm/1500mm adjustable (+100/-50 mm, with Ø6 mm belt nose) |
| Driving terminal/tunnel outlet | 1800 mm or 300 mm open section with Ø16 mm belt nose |
| Control system | Siemens or Allen Bradley PLC and 6″ touch screen |
| Belt type | FDA approved polyurethane coated belt type PU-M1 or silicone coated type Si/2 band with a smooth surface |
| Belt height | 1000 mm adjustable (+30/-30 mm) |
| Band speed | Full range: 0,5 – 12 m/min.(0,5 – 2,9; 1,5 – 8; 2,1 – 12 m/min.) |
| Working direction | Left to right (LR) or right to left (RL) |
Print materials & documents
Seamless installation and quick start
Installation overview
Our expert team ensures a smooth and efficient installation process. From initial setup to full operational status, we manage every detail to get your production line running seamlessly.
Training and support
We provide thorough training for your staff, ensuring they are proficient in operating and maintaining the Nielsen Cooling Tunnel. Our support extends beyond installation, offering ongoing assistance as needed.
Maintenance and optimization
Regular maintenance and optimization services are available to keep your system performing at its best. Our experts monitor your setup and make necessary adjustments to maintain efficiency and productivity.
Discover the Aasted Technology Center
Explore new possibilities for your chocolate production by testing and refining your products at the Aasted Technology Center. Our advanced facility offers the perfect environment to experiment with different formulations and processes, ensuring your products meet the highest standards of quality and innovation.
Reach out to hear more about the Nielsen Cooling Tunnel
Our team is ready to provide you with detailed information and answer any questions about the Nielsen Cooling Tunnel. Discover how our innovative solutions can enhance your production capabilities and meet your specific needs. Don’t hesitate to reach out and explore the possibilities with Aasted.
Got questions about this product?
Fill out the short contact form, and we’ll get back to you with the information you need. Let’s find the right solution for your needs! Share your details, and we’ll connect you with the right expert to guide you every step of the way.
You can also click the button below and find the direct contact information for a specific Aasted employee.
