Alice™ II Extruder
The design of the Alice™ II extruder and depositor is built for a safe and quick changeover. Its pressure-controlled feeding system gently handles raw materials, ensuring accurate deposits with minimal deviations. The modular design allows for swift tool changes, such as pivoting nozzles and wire cutters, to accommodate various products.
Discover the Versatility of the Aasted Alice™ II
Take the Alice™ II for a 360° spin

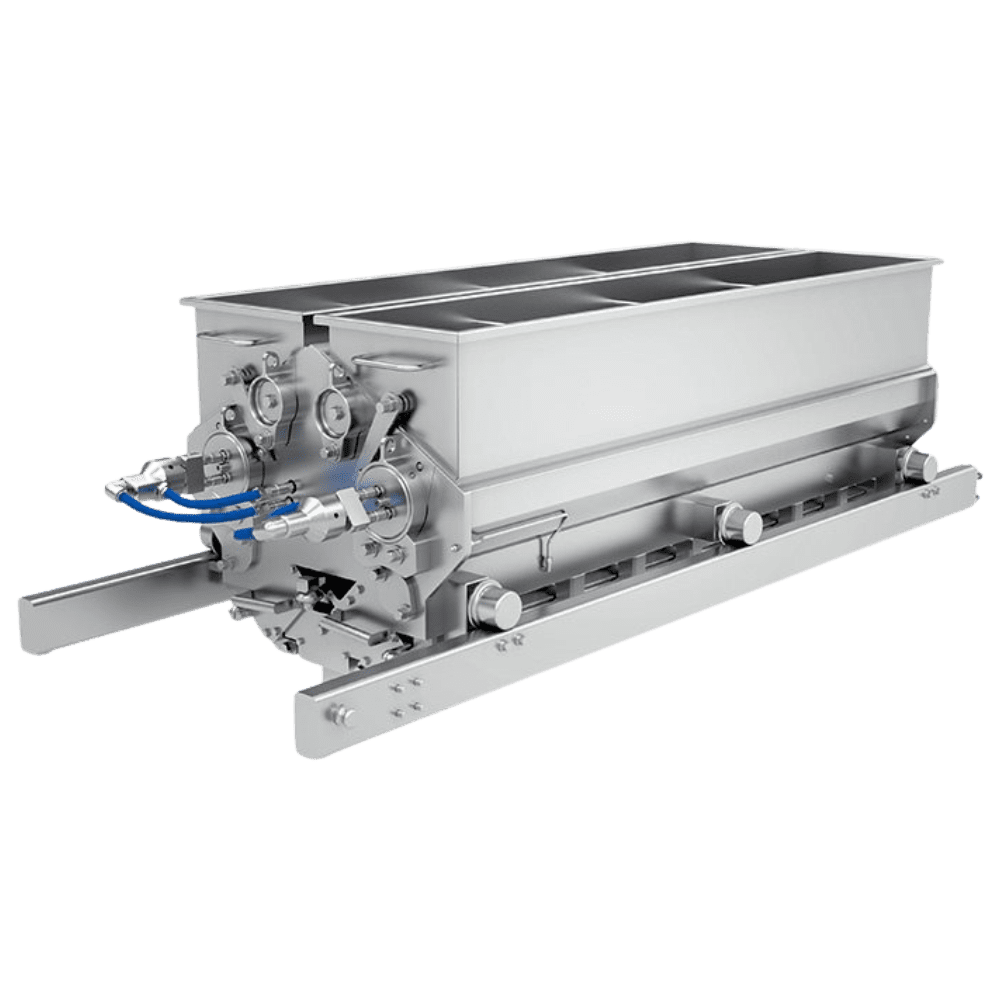

Offline allows you to remove the head from the production line. Because the cleaning can be performed remotely, the line can continue operating with other machines during the cleaning sequence.

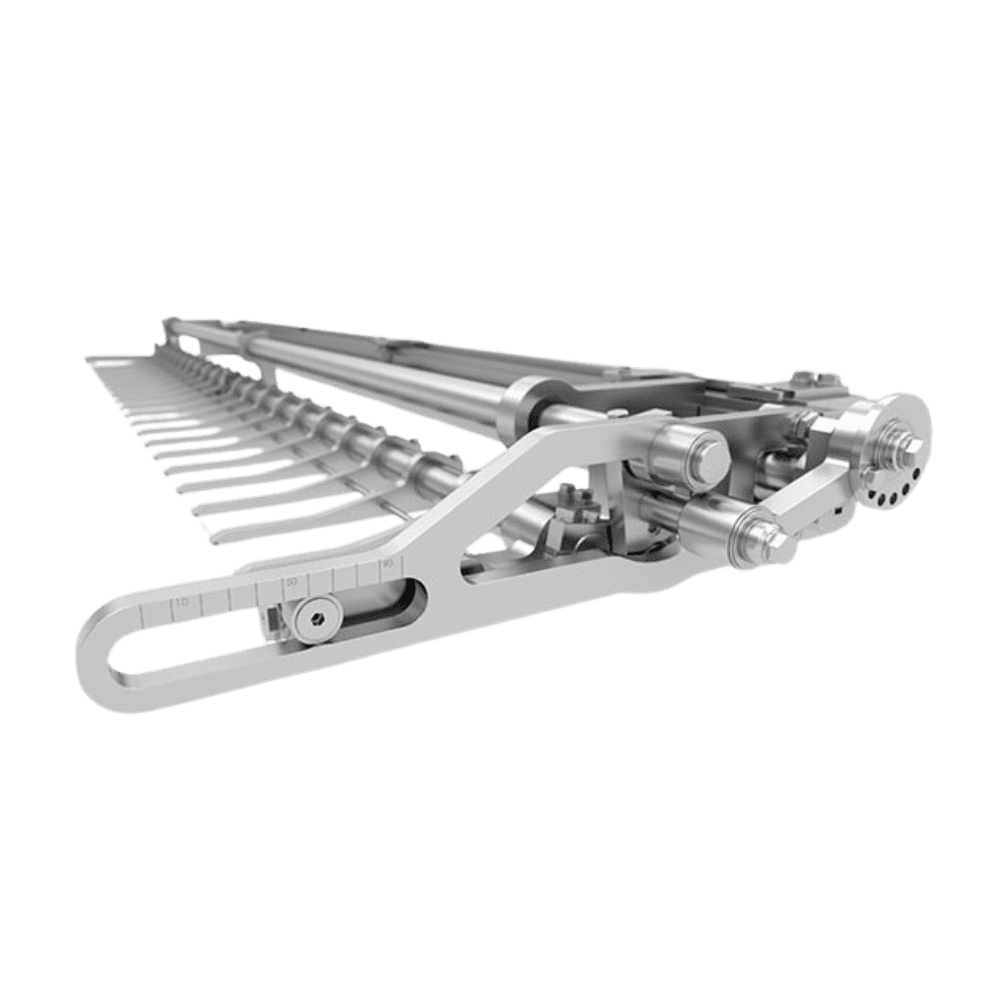

The new Alice™ II can be equipped with a high-frequency wire cutting system, ensuring a clean cut and precise positioning on the belt.

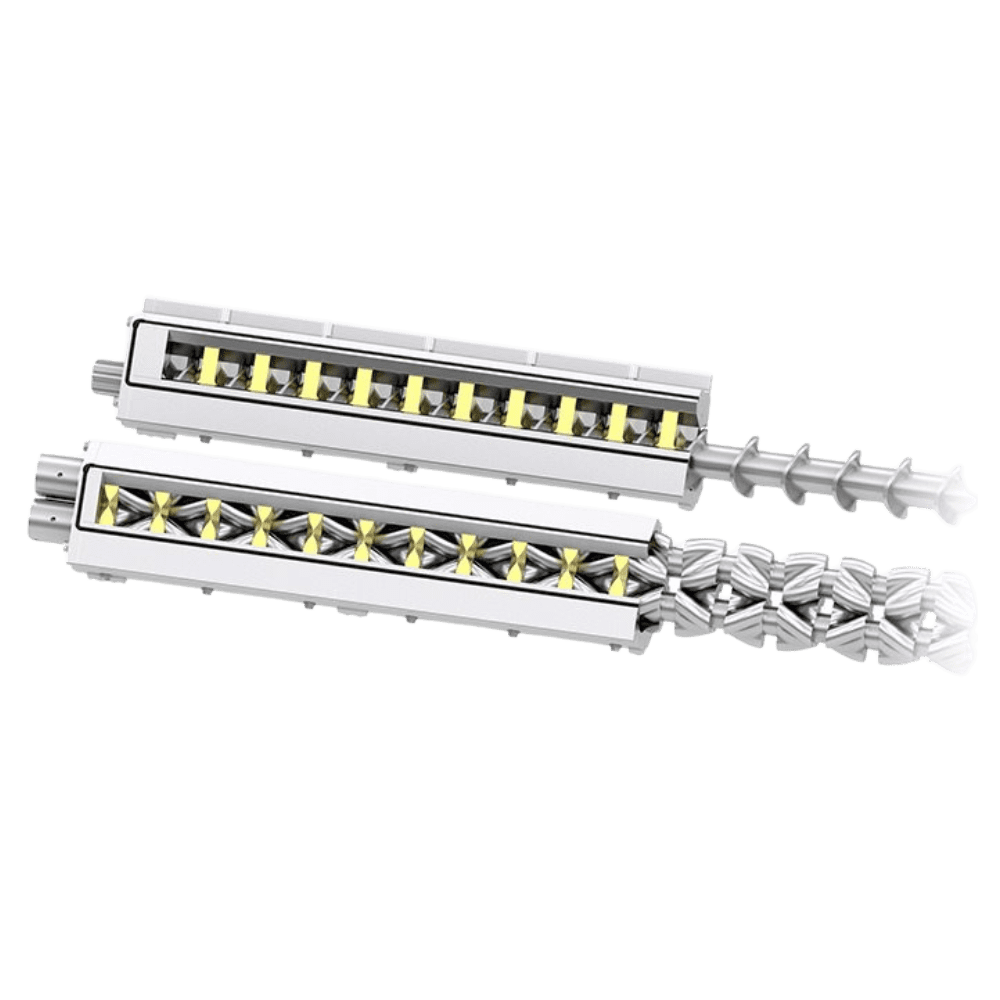

Efficient dosing with a new pump design for masses. The new pump system can handle high amounts of inclusions.
The features of the head
- Easy to remove stainless-steel head [1].
- Assisting feed roller with independent speed control. The function is to gently guide the mass to the main feed roller – the Booster™ technology [2].
- Booster™ feed rollers in all stainless-steel with active wings for highly efficient, slow running and gentle pre-feeding. First in, first out pre-feeding of mass [3].
- Housing. A closed heavy-duty stainless-steel housing with full seam welding [4].
- Measuring volume for detection of pre-feeding pressure [5].
- Rollers for the off-line function [6].
- Pump house/CamRotor™ is optimized for accuracy and gentle handling of ingredients. Choose either the GearPump or the patent protected Sine Pump CamRotor [7].
- Die plate. A broad portfolio of die plates and tools are available to shape and form precisely the product you are looking for [8].
- Nozzles. Fast changeover of nozzles and dies and quick connections [9].
- Heavy Duty mechanism to lift and lower/release the CamRotor™ profiles automatically [10].
User-friendly interface
Unlike other machines with complicated interfaces, our new patented software boasts a user-friendly design. Developed by users for users, this interface is specifically tailored by Aasted to meet the needs of the bakery industry.
Off-line function for easy cleaning
Alice II has an off-line function that allows you to remove the head while the production is still running with alternative machines on the line. This gives you the advantage of being able to run the line while cleaning it remotely.
Specifications
| Band widths | 600 mm 800 mm 1000 mm 1200 mm 1500 mm |
| Working height | 1000 mm |
| Working direction | Left to right – or right to left |
| Extruder heads | Up to 2 heads for different masses |
| Recipe handling | Up to 30 different recipes and related settings |
| Base unit | Z-base for up/down motion XZ-base for up/down motion and pacing |
| PLC | Siemens or Allen Bradley |
| HMI | 12” touch screen |
| Drives | Servo |
| Compressed air | Min. 6 bar (100 liter/hour) |
| Power supply | Single Head: Up to 15 kW Double Head: Up to 25 kW |
| Pre-feeding | 0.2 – 2.5 bar |
| Extruding | Max. 150 liter/hour per row (light to medium heavy masses) |
| Z-motion X-motion | 150 mm 150 mm |
Installation and getting started
Get started with minimal downtime
Get started with minimal downtime by choosing Aasted’s efficient solutions. Our advanced technology and expert support ensure your production runs smoothly from day one.
Ensuring quality with rigorous testing
We always test equipment before shipping to guarantee optimal performance and reliability for your production.
Seamless integration into your existing line
Our solutions are designed for easy integration, enhancing your current production setup without disruption.
Print materials & documents
Visit Aasted Technology Center
At Aasted Technology Center, you can explore and experiment with our wide range of machines for chocolate, bakery, and confectionery production. Our test center allows you to find the right solution for your needs, and see firsthand how Aasted Smart Control™ can reduce downtime, service, and maintenance costs. Fill in the form below or contact our sales manager to start exploring the possibilities with Aasted.
Reach out to hear more about the Alice™ II
At Aasted, we prioritize your satisfaction with our dedicated customer service team. Whether you need technical support, product information, or assistance with an order, we are here to help you every step of the way.
Got questions about this product?
Fill out the short contact form, and we’ll get back to you with the information you need. Let’s find the right solution for your needs! Share your details, and we’ll connect you with the right expert to guide you every step of the way.
You can also click the button below and find the direct contact information for a specific Aasted employee.
